Kev piav txog

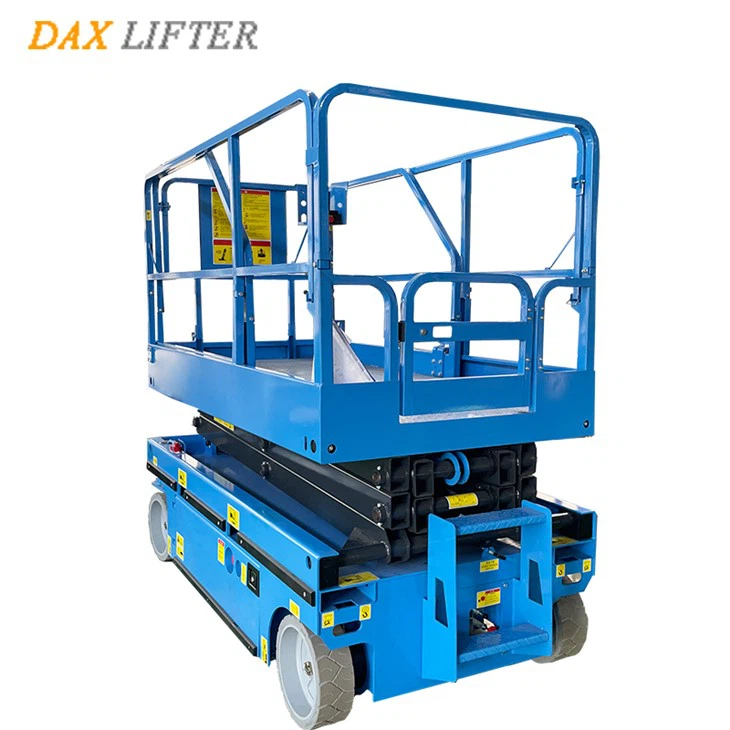

14m hluav taws xob tsav Scissor Nqa yog qhov hloov tau yooj yim thiab muaj kev nyab xeeb lub platform. Nws nta dual tswj panels (sab saud thiab qis dua), ua rau cov neeg ua haujlwm los tswj hwm nws yooj yim los ntawm lub platform lossis theem hauv av. Txawm li cas los xij, los xyuas kom cov neeg siv kev nyab xeeb, cov kev tswj hwm loj thiab qis tsis tuaj yeem ua haujlwm ib txhij.
Tus kheej propelled scissor nqa txoj kev tswj hwm sab saud sib xyaw ua ke cov kev nyab xeeb kev nyab xeeb. Txhawm rau tiv thaiv kev ua kom muaj zog, cov neeg ua haujlwm yuav tsum nias thiab tuav lub khawm kev nyab xeeb thaum siv tus kov kom tswj tau kev nqa lossis txav haujlwm. Thaum lub sijhawm ua haujlwm, lub ergonomic coj kuj tseem muaj kev tswj hwm cov kauj ruam, cia kev hloov kho kom haum ntawm cov tsav tsheb rau kev ua kom zoo.
Txawj txawj liXov xwm
|
Tus qauv |
DX06 |
DX06(S) |
Dx08 |
Dx08(S) |
Dx10 |
DX12 |
DX14 |
|
Lifting muaj peev xwm |
450kg |
230kg |
450kg |
320kg |
320kg |
320kg |
230kg |
|
Platform Nce Ntev |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
0.9m |
|
Txuas ntxiv platform |
113kg |
110Kg |
113kg |
113kg |
113kg |
113kg |
110Kg |
|
Max ua haujlwm qhov siab ua haujlwm |
8m |
8m |
10m |
10m |
12m |
13.8m |
15.8m |
|
Max Platform Qhov Siab |
6m |
6m |
8m |
8m |
10m |
11.8m |
13.8m |
|
Zuag qhia tag nrho ntev |
2430mm |
1850 hli |
2430mm |
2430mm |
2430mm |
2430mm |
2850mm |
|
Tshaj dav dav |
1210mm |
790mm |
1210mm |
890mm |
1210mm |
1210mm |
1310 hli |
|
Zuag qhia tag nrho (cov saib xyuas tsis quav) |
2220mm |
2220mm |
2350mm |
2350mm |
2470mm |
2600Mm |
2620mm |
|
Zuag qhia tag nrho (chaw zov menyuam) |
1670mm |
1680mm |
1800 hli |
1800 hli |
1930mm |
2060mm |
2060mm |
|
Platform Qhov Coob |
2270 * 1120mm |
1680 * 740mm |
2270 * 1120mm |
2270 * {860 hli |
2270 * 1120mm |
2270 * 1120mm |
2700 * 1110mm |
|
Log Hauv |
1.87m |
1.39m |
1.87m |
1.87m |
1.87m |
1.87m |
2.28m |
|
Tig hluav taws xob (hauv \/ tawm log) |
0/2.4m |
0.3/1.75m |
0/2.4m |
0/2.4m |
0/2.4m |
0/2.4m |
0/2.4m |
|
Roj teeb |
4 * 6v \/ 200ah |
||||||
|
Rov kho dua |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
24V/30A |
|
Qhov Siab Muaj Peev Xwm |
25% |
25% |
25% |
25% |
25% |
25% |
25% |
|
Tus kheej lub cev |
2250kg |
1430KG |
2350kg |
2260kg |
2550kg |
2980kg |
3670kg |
Cim npe nrov: {{0 {}}, yuav, tus nqi, nqi, kev muag khoom
Ua hauj lwmPRinciple ntawmSco tshuabLiFPtsev dim
Scissor Nqa Platforms tuaj yeem muab faib ua peb hom: tsau, txawb, thiab traction. Lub zog ntawm lub nqa txawb yog phau ntawv lossis hluav taws xob, thiab cov qauv ruaj khov, kev ua haujlwm du, thiab muaj peev xwm loj. Cov pob txiab hluav taws xob feem ntau siv nyob rau hauv kev lag luam logistics, rau kev nqa cov khoom ruaj khov, thiab ua haujlwm tau zoo, kev ua haujlwm tau zoo, thiab kev saib xyuas yooj yim thiab yooj yim thiab yooj yim thiab yooj yim thiab yooj yim thiab yooj yim thiab yooj yim thiab yooj yim thiab yooj yim thiab yooj yim thiab yooj yim.
Kev nqa nqa khoom tau muab nqa cov khoom ruaj khov zoo thiab muaj ntau ntawm cov khoom nqa khoom nqa khoom. Nws yog tsuas yog siv rau cov khoom thauj los ntawm cov kab sib txawv ntawm cov khoom siv thiab chaw thau khoom ntawm cov khoom loj, thiab cov khoom noj khoom haus los ntawm cov tsheb loj uas muaj cov tsheb loj thiab cov khoom siv ceev ceev.
Txawb nqa tau siv cov khoom siv tshwj xeeb rau cov kev ua haujlwm siab. Nws cov qauv sib luag muaj cov kev ruaj khov ntau dua, ua haujlwm dav dav, thiab ua haujlwm ntau dua li cov haujlwm sib txawv ntawm ntau tus neeg. Nws txhim kho cov efficiency thiab kev nyab xeeb ntawm kev ua haujlwm Aerial thiab feem ntau yog siv rau sab hauv tsev, thiab sab nraum lub tsev, cov choj, chav tsev, thiab cov chaw ua haujlwm.
Tractting platform siv sab nraud lub zog rau traction, siv peb-theem fais fab mov lossis lub cav diesel raws li nws lub zog. Nws yog ib qho yooj yim thiab yoo mov kom txav thiab haum rau cov haujlwm ntev. Nws yog tsuas yog siv rau kev ua haujlwm sab nraum zoov hauv kev lag luam xws li roj av, hluav taws xob, kev tsim hluav taws xob, thiab xa xov thiab xov tooj.
Tus ua hauj lwm ua haujlwm ntawm no peb SCISSOR nqa plaws yog raws li hauv qab no
Scissor Nqa Platform relies ntawm lub expansion thiab folding ntawm SCISSOR-hom kev them nyiaj yug los ua tiav txoj kev txhawb nqa thiab txo qis ntawm cov khoom thauj khoom. Nws lub hwj chim los ntawm kev thawb lub nthuav dav thiab muab daim ntawv tas ntawm txiab thiab kev txuas ntxiv thiab txhawb nqa cov roj raj. Txij li thaum qhov txuas ntxiv thiab muaj kev sib txuas ntawm cov roj kheej yog txiav txim siab los ntawm cov roj lub tog raj kheej feem ntau qeeb thaum tsim cov roj hluav taws xob ceev. Qhov nrawm yog 200mm \/ feeb, thiab lub cheeb ntawm cov roj inlet yeeb nkab txuas nrog cov roj kheej yog φ6mm. Yog tias cov roj yeeb tawg, cov roj hydraulic tuaj yeem rov qab los ntawm φ6mm roj inlet, yog li qhov descent will kuj tseem qeeb heev, yog li tiv thaiv kev puas tsuaj thiab tsis muaj peev xwm tiv thaiv kev puas tsuaj thiab poob. Cov ntsiab lus yog raws li hauv qab no:
Nyob rau hauv kev tswj hwm ntawm cov kev tswj hwm ntawm txoj kev tswj, lub muaj zog ua haujlwm rau kev ua haujlwm hauv siab ua haujlwm, thiab cov twj rau cov tshuab ntxhua khaub ncaws hydraulic los ntawm lub cev muaj zog ntawm cov kua. Cov kua ua rau lub tog raj kheej hydraulic, uas yog ces hloov mus rau hauv cov tshuab hluav taws xob ua rau cov tshuab txiab. Cov tshuab hluav taws xob ua ntawm lub pob zeb nqa los ntawm SCISSOR mechanism thiab thaum kawg hloov pauv mus rau lub zog muaj zog lossis kev paub txog kev nqa lossis cov khoom txo qis lossis cov khoom poob qis.
Tus txheej txheem ua hauj lwm ntawm scissor nqa feem ntau yog pom los ntawm tus qauv scissor, yog li kev sib txuas cov qag pin yog tus nquag hnav. Qhov hloov ntawm tus pin qag yog qhov tseem ceeb dua, thiab tus neeg siv yuav tsum soj ntsuam nws sai sai thaum siv thiab ua lub sijhawm tsis tu ncua.
